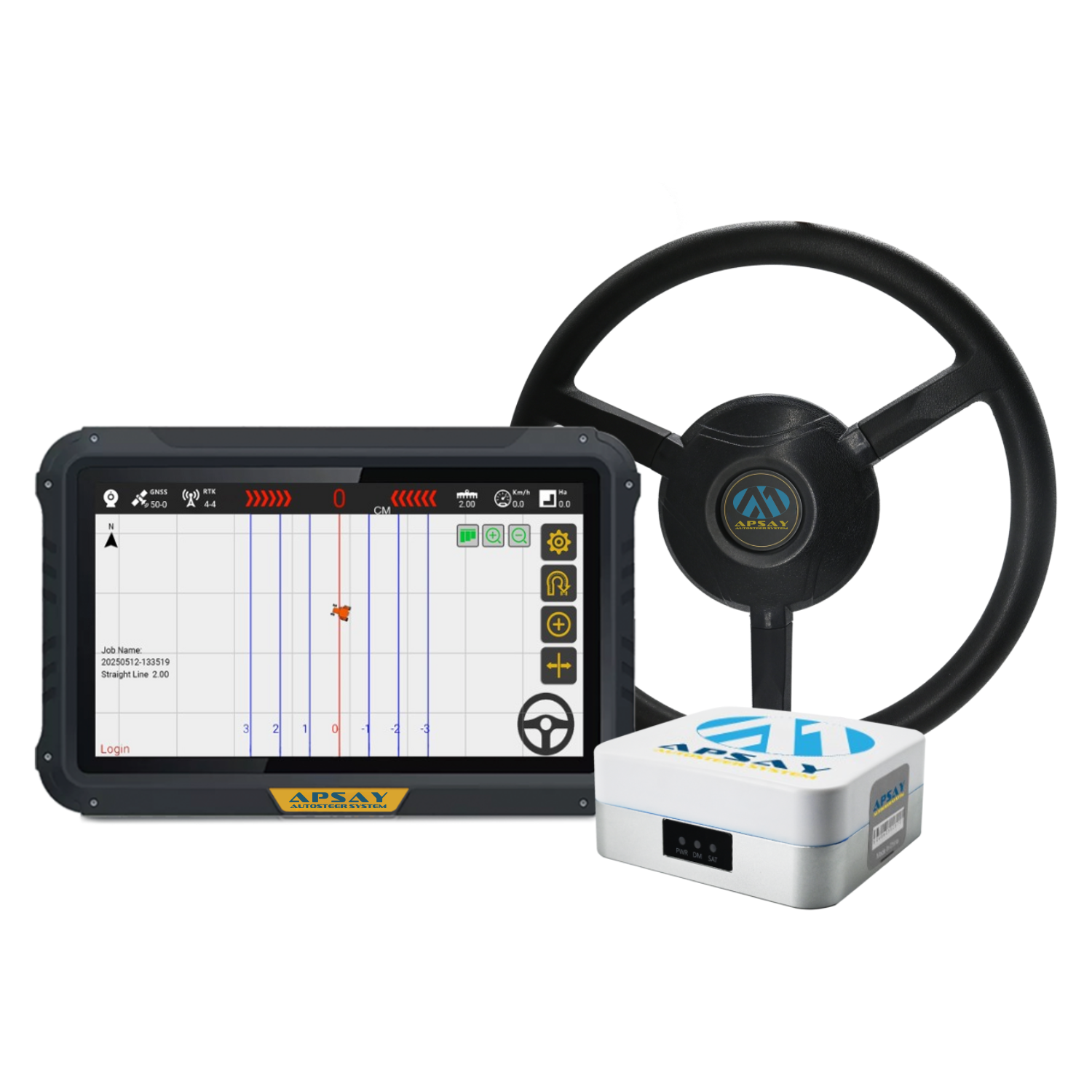

APS-10 AutoSteer System

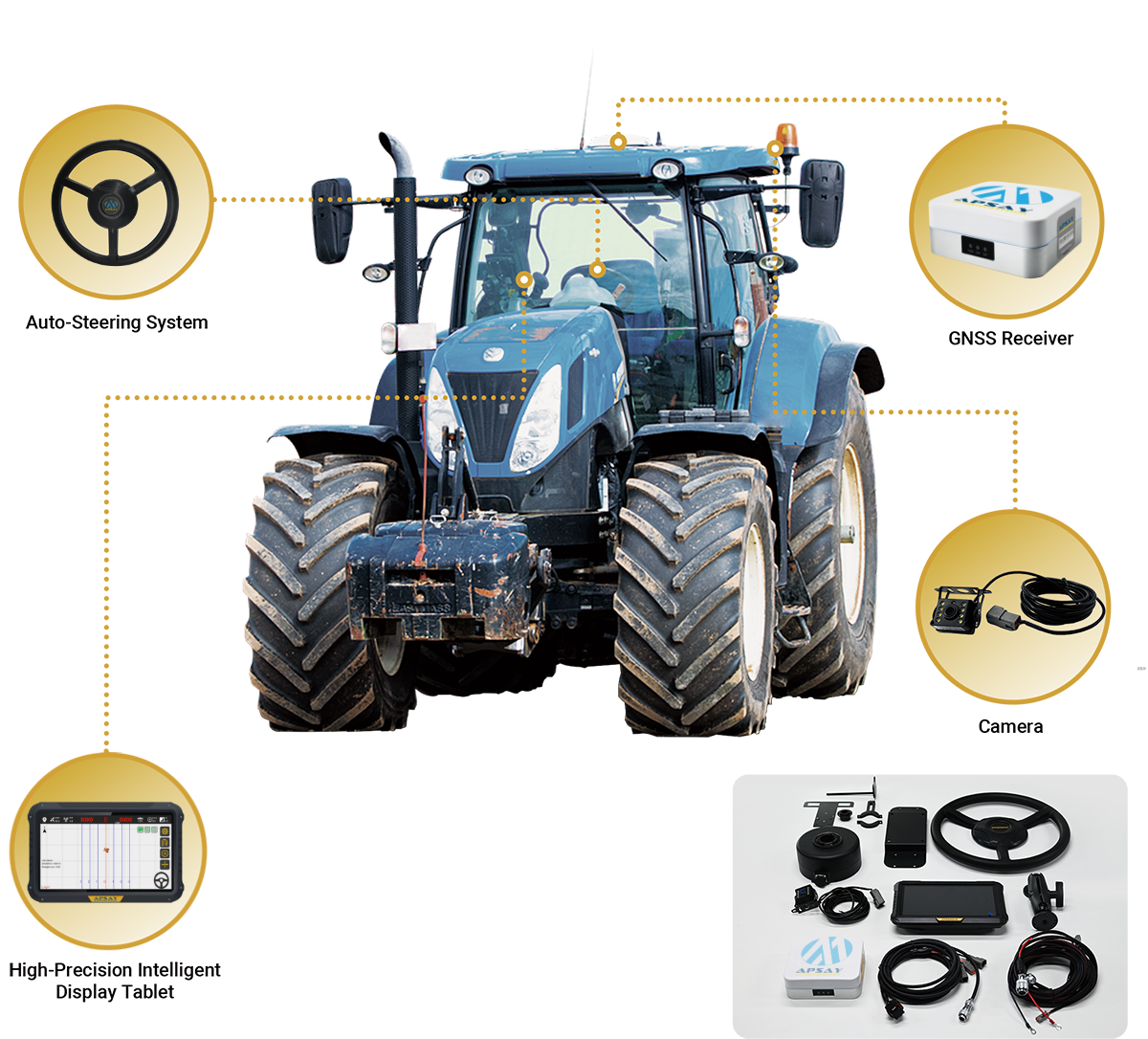

APS-10 is an auto-steering system designed for agricultural machinery. It utilizes high-precision satellite positioning to deliver centimeter-level accuracy in vehicle location and employs advanced DC servo motor technology for steering control. The system features an integrated controller equipped with 4G, IMU, UHF radio, and satellite positioning modules, ensuring highly accurate autonomous operation as well as straightforward installation and transfer between different vehicles. Suitable for agricultural tasks such as seeding, harvesting, and spraying, APS-10 improves work efficiency and crop yields while reducing fuel consumption and labor costs.
Integrated Controller
High Precision
Consistency in Operations
Excellent Versatility
Other Features
It supports wheel angle sensor mode which is essential for specific agricultural operation.
It supports secondary development to provide more tightly integrated components.
It provides quick and convenient installation, allowing users to activate common functions in just a few steps.
It features a 10.1-inch display with instant multi-touch response and is ruggedized for water, dust and shock.
SPECIFICATIONS

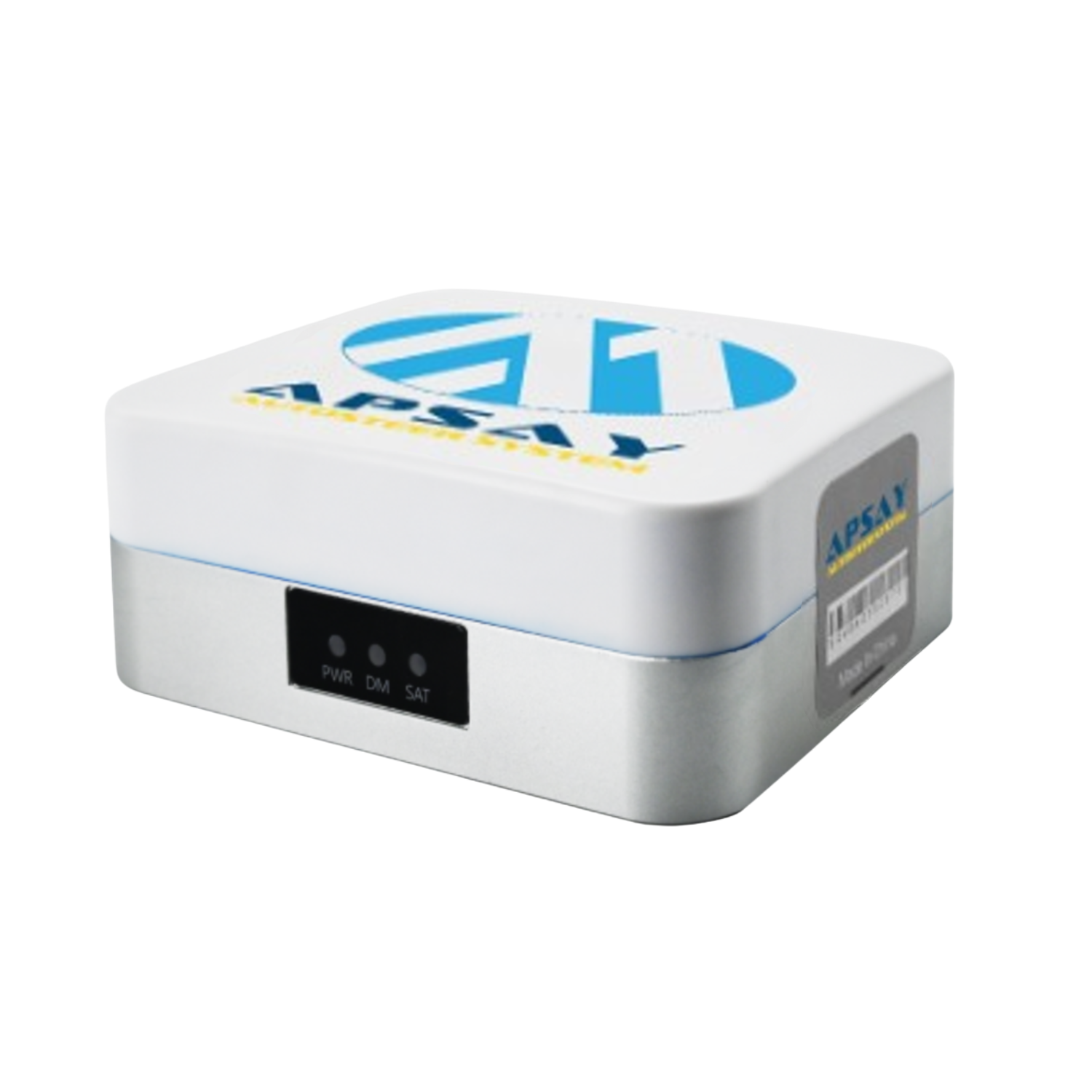

RECEIVER
- GNSS
- Accuracy (Horizontal)
- Accuracy (Vertical)
- Working temperature
- Size
- Network
- GPS GLONASS BDS
- ±8mm + 1ppm RMS
- ±15mm + 1ppm RMS
- -20°C ~+70°C
- 159*56mm
- 2G/3G/4G

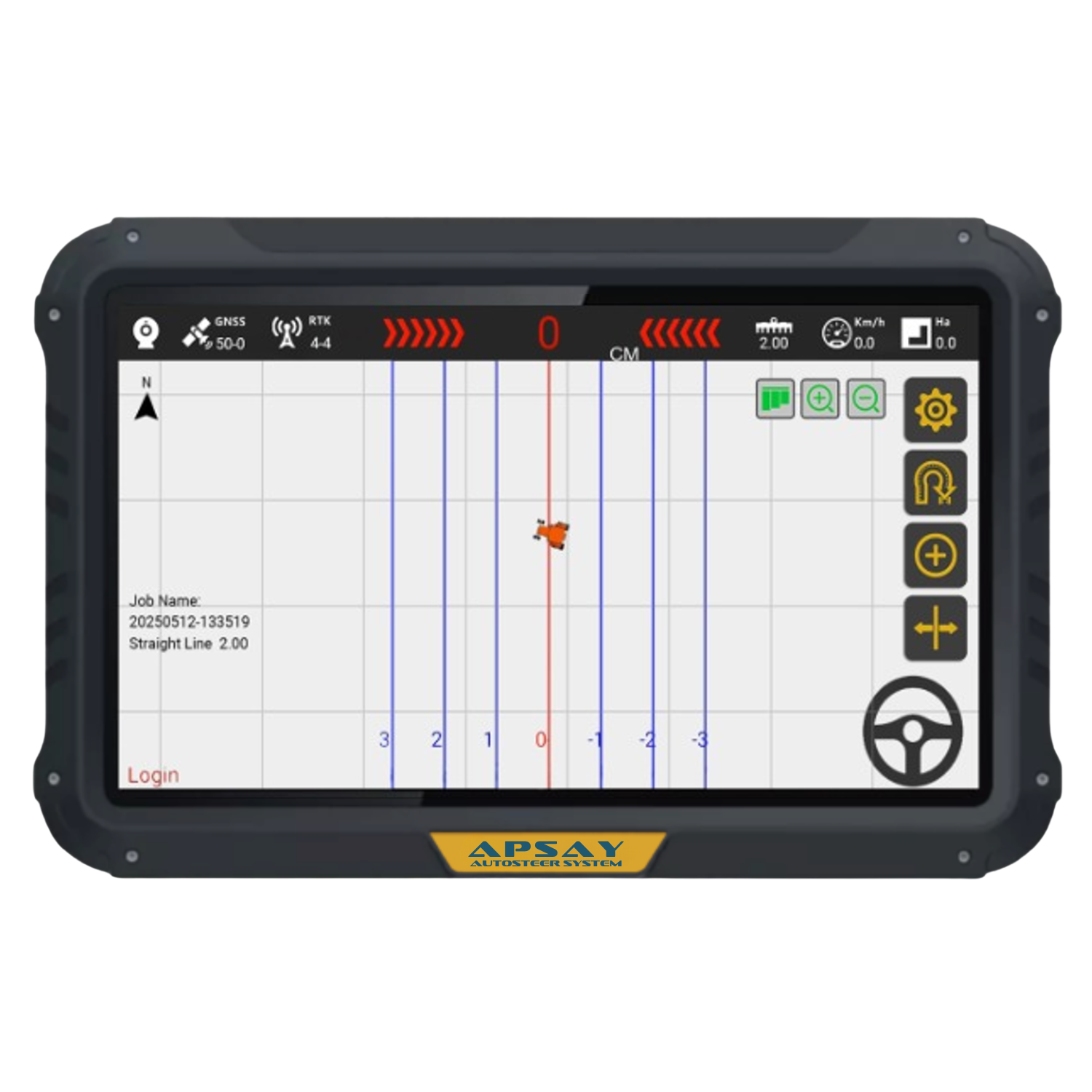

VEHICLE MOUNTED TABLET
- Display Screen
- Brightness
- Resolution
- I/O
- Communication
- Operating Temperature
- Power
- 10.1-inch, Support 5-point capacitive touch
- 750cd/m2
- 1024*600 px
- RS232*2 RS485*1 CAN*1/2
- 4G WiFi2.4G BT4.2,BLE USB 2.0*1
- -30°C~+70°C
- 5-36V DC Input ACC, State detection for ignitio

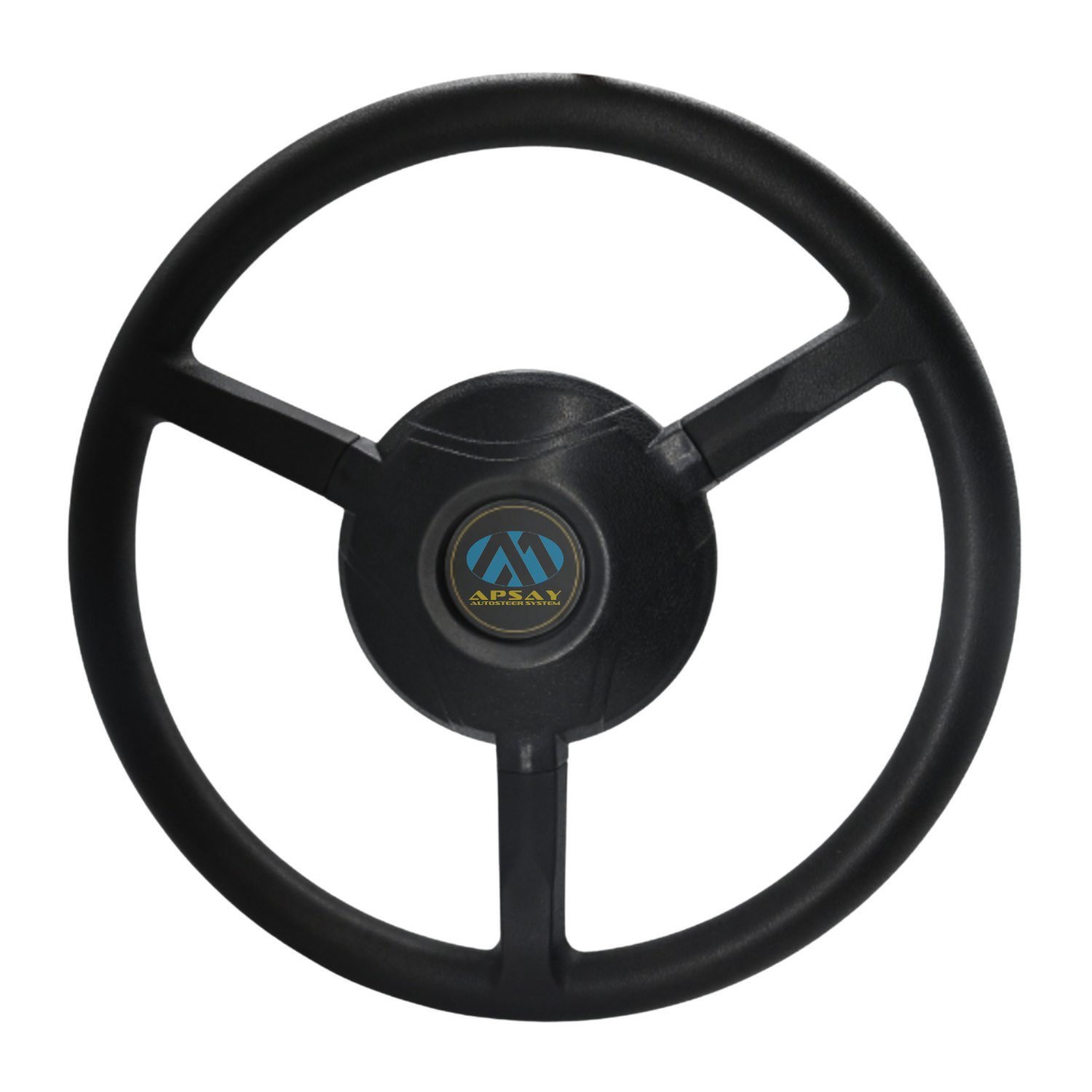

AUTO-STEERING SYSTEM
- Rated Torque
- Max RPM
- Rated Current
- I/O
- Power
- Motor Dimensions
- Steering Wheel Diameter
- Operating Temperature
- 7.5 N·m
- 180 RPM
- 15A
- 1 × CAN
- (9-32)VDC
- 165mm × 80.5mm
- D: 410mm
- -20°C ~ +70°C
CAMERA
- Power supply
- Viewing Angle
- Resolution
- Operating Temperature
- DC12V +5%
- 120°
- 1280(H) × 720(V)
- -20°C ~ +70°C
ACCESSORIES
- Receiver Unit*1 Tablet Unit*1 Steering Wheel*1 Motor and Driver*1
- Main Cable*1 Tablet Power Cable*1 Mount*1
- Screw Accessories Pack*1 Camera (Optional)*1
